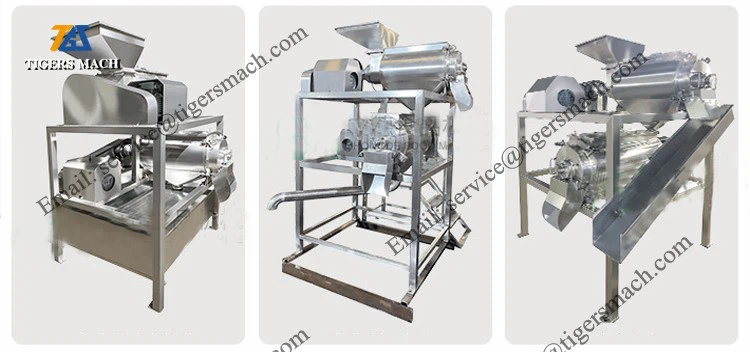

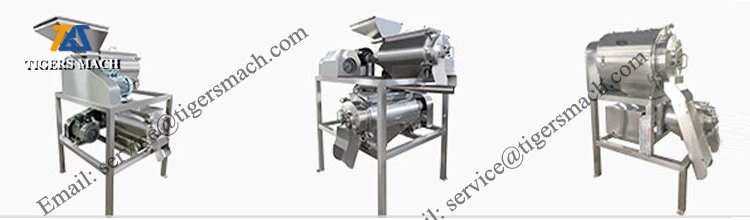

Industrial mango pitting and pulping machine, also named at good quality fresh mango core removing and extracting equipment, it is multifunctional equipment, widely used in processing the stone fruits (mango, peach, apricot, jujube), berries series (tomato, kiwi, strawberry, pitaya), and after pre-cooking softening benevolence fruits (apple, pear) or any other fruit to nuclear and beating separation.
There's two stages pulping for processing mangoes or other fruits. One stage is mango beating for first coarse mango beaters, the second stage is fine beating and pulping. Double way to nuclear beater of mango, first is nuclear rotor, second is for beating filtering rotor, it can be realized to nuclear (head), peel beating process; If customer use the mango pulping machine for handling berries series, no matter single way or double, rotor will use the beating rotor.
Technical Parameter.
|
Model |
TGS-DJ2-0.5 |
TGS-DJ2-2.5 |
TGS-DJ2-4.0 |
|
Capacity |
0.5t/h |
2.5t/h |
4t/h |
|
Power |
4kw+4kw |
4kw+4kw |
7.5kw+7.5kw |
|
Dimension |
1300*1080*1800mm |
1400*1230*1830mm |
1545*1360*2120mm |
Features of factory price mango beating pulping process equipment.
Efficiency automatic mango pitting and beating machine, which made of good quality
stainless steel 304. It main includes different working section, such as driving system, bearing, shaft and cylinder cover and slurry retaining plate, stainless steel bucket body, castellated shaft, screen, scraper before beating, frame and so on. Nuclear beating down on the barrel body is equipped with observation hole cleaning, so, it will be easy to see and to clean.
Automatic slag slurry separation after mango de-coring and beating machine;
It can be combined on the related mango processing equipment, such as mango cleaning
machine, mango juice storing machine, mango pulp pasteurizer machine.etc and it can be used for pitter and beater mangoes independent;
Manufacturer price mango denucleater and beater machine also can be customized
according to your request, such as customized material store tank, customization machine frame of mango beating machine, customize discharge outlet port.
Tigers machinery factory already manufactured mango processing equipment for more 10 years, we could provide the full complete solution about mango processing equipment, also there's technical and production guidance for your mango processing factory, please contact us for free.
