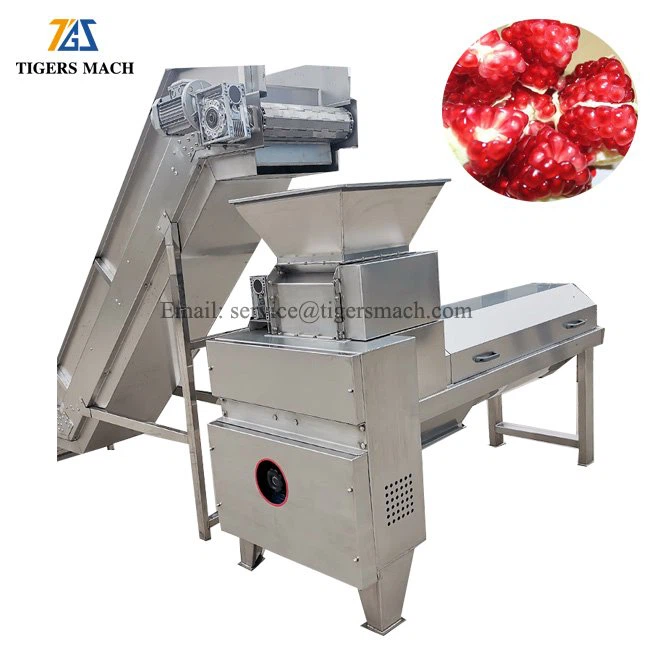

Pomegranate Process Machine

Pomegranate peeling crushing separator is mainly used for pomegranate wine and beverage pre-treatment procedure. This pomegranate peeler machine main function is to select, to clean fresh pomegranate cutting and opening, separating pomegranate skin and seed kernel. Then it will enter into next production step for juicing.

Firstly, the entire fruit pomegranate will be feed into crushing hopper device for coarse crushing, split pomegranate skin flap, 2-4 pomegranate to break up by screw device after crushing, scattered device for the formation of two dozen fruit bar by spiral to scatter of pomegranate, pomegranate by going after the break up screen hole drops into the drop guide, turn the screen on the screw conveyor to the fruit body fell out of the mouth; Pomegranate skin by scattered formation spiral into the equipment tail slag notch.

This pomegranate peeling machine is composed of feeder hopper, broken, scattered device, screw conveyor, electronic control system and machine frame device component.

1. The feeding device of pomegranate peeling machine position the front of the terrier device, main components for the conveying screw, with a terrier device the same power.

Terrier removal equipment: main parts is axis and screen, driving system. The stem axis is installed on a spiraling distribution stem leaves. The stem sieve is made by stainless steel plate punching forming, his function is to separate the fruit, stems, and discharge closed to stem branches. The terrier in frame nose gear transmission system, driven by speed reducer through the chain sprocket.

2. The crushing plant is located in the lower stems turn screen, consists of two sets of broken roller. Two roller clearance can be adjusted between 4-15 mm, crushing plant and frame connected by a chain, quick opening handle lock, will loosen lock nut, can start to clean.

3. The frame: frame is the connecting device of bearing parts, each part is made by stainless steel manufacturing.

The related equipment for pomegranate includes automatic feeding conveyor, automatic peeling machine and automatic pomegranate juicing machine.

Spare parts with pomegranate peeling machine have bearing, graphite copper sleeve, screen roller and other equipment tool.
